Product Details:
Payment & Shipping Terms:
|
Category: | 4 / 8 / 16 CH AHD DVR | AHD Cameras: | Support 720P 960P AHD Cameras |
---|---|---|---|
Analog Camera: | Support All Types Of Analog Cameras | IP Cameras: | Support 720P IP Cameras |
Dimensions: | 235(D) X 260(W) X 40(H)mm | Weight: | 2 KG ( Not With HDD ) |
Highlight: | digital camera video recorder,digital video surveillance recorder |
Top Selling Product:

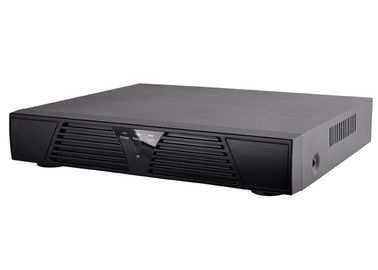

AHD DVR Hybrid Digital Video Recorder for 720P and 960P HD Analog Camera 4 8 16 Channel
Top Choice for this Series:
23$ for 4CH, 31$ for 8CH and 77$ for 8CH
Great Picture
Specifications (4CH AHD DVR as Example) :
System | |
Main Processor |
ARM Cortex A9 Processor |
Operating System | Embedded LINUX |
Video and Audio | |
Video Input | 4 Channel, AHD |
Video Output | 1 VGA, 1 TV,1 HDMI |
Audio Input | 4Channel, RCA |
Audio Output | 1 Channel, RCA |
Recording | |
Video Compression | H.264 |
Audio Compression | ADPCM |
Resolution | 720P(1280×720), 960H(P:960×576/N:960×480) |
Video Quality | Best/Fine/Normal |
Record Rate | 720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps) |
Record Mode | ManualTimerMotion Detection |
Playback & Backup | |
Sync Playback | 4 Channel / 1Channel |
Remote Playback | 4 Channel / 1Channel |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital zoom |
Backup Mode | USB Device/Network |
Display | |
VGA | Resolution: 800×600, 1024×768, 1280x720, 1280×1024, 1920x1080 |
HDMI | Resolution: 720P(1280×720), 1080P(1920×1080) |
Display Split | 4 Channel / 1Channel |
Privacy Masking | 4 Rectangular Zones (Each camera) |
OSD | Camera Title, Time, Video Loss, Motion Detection, Recording |
Network | |
Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
Network Functions | HTTP, IPv4,IPv6, TCP/IP, DHCP, DNS, DDNS, NTP |
DDNS | 3322, Dyndns, changeip, no-ip |
Web Browser | IE6-11, Firefox, Chrome (Under Windows System) |
CMS Software | Support Windows XP /Windows Vista/Windows 7/Windows 8 |
Extra Stream | D1/CIF/QCIF(1~25fps) |
Smart Phone | iPhone, iPad, Android, Android Pad |
Alarm | |
Sensor Input | No |
Output | No |
Motion Detection | 4 Channel |
Trigger Events | Recording, PTZ, Tour, Email |
Email Alarm | Send Strings to The Designated E-mail |
PTZ | |
Interface |
RS485 |
Protocol | Pelco-D, Pelco-P |
Baud Rate | 1200~115200 |
Address | 0~255 |
Hard Disk Driver | |
Interface Type |
1 SATA Interface |
Capacity | Up to 4TB Capacity |
General | |
Language |
Support 19 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic, |
USB Interface |
2 USB 2.0 Interfaces |
Power Supply |
DC12V/2A |
Working Environment |
-10~55℃/10~90% |
Dimension (W×D×H) |
235(D) x 260(W) x 40(H) mm |
Weight |
2 KG ( not with HDD ) |
Why Choose Glory South?
In fact, most of the manufacturers sell with at least 20% profit while we sell with merely 5%
profit for exactly same products. At the same time, we provide 3 years warranty.
We aim to support 1000+ CCTV companies to grow to be BIG WHOLESALERS in their countries
or regions by 2017!! Would you like to join us?
Glory South Introduction:
China’s leading CCTV products manufacturer, having 6000sqm factory in Shenzhen and Dongguan.
We own several top CCTV brands and subsidiary companies, including Xidean Electronic Science and
Technology Co., Ltd. Our products are hot sold in America, Europe, Middle East, Africa, Southeast
Asia etc, as well as China’s major cities based on the longterm friendly cooperation with more than 800
agents and dealers worldwide. By 2014, nearly 50 national key projects are using our CCTV products.
Besides, Binwo Brand is one of Xidean’s successful brands, targeting on E commerce market. It aligns
the production standards and quality with our offline products and has been awarded ‘Top 10 Leading
Security Brand in China’, ‘Customers Top 10 Favorite Security Brand in China’ and ‘Top 100
Best Security Product Enterprise in China’.
Some of our products’ Price:
1000tvl bullet: 8.8$
1000tvl dome: 7.5$
1.0 Mega IP dome: 15.2$
1.0 Mega IP dome: 14.1$
AHD 1.3 Megapixel dome: 13.3$
AHD 1.3 Megapixel dome: 12.0$
700tvl bullet: 7.5$
700tvl dome: 6.0$
Please feel free to contact us for more details. Thank you!
