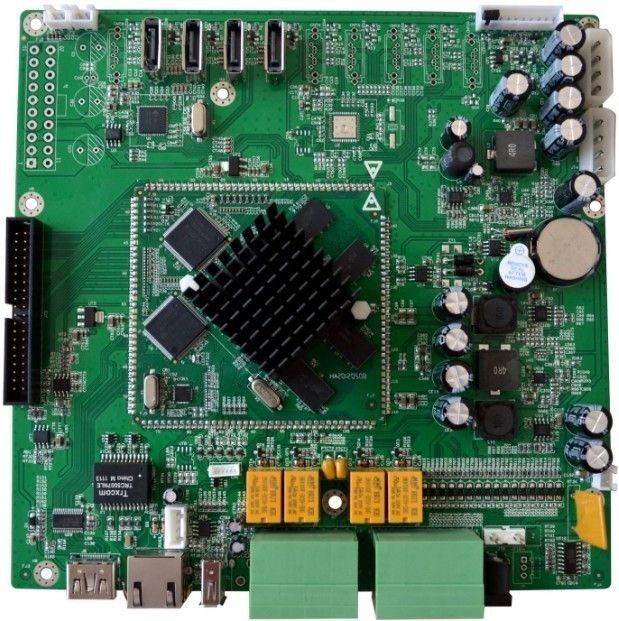

OEM Full HD Network Wireless DVR PCB Board Design Services
Feature:
Ø Intelligence analysis system:Intelligent analyze function including girth detection (cordon, alert area), items, care (loss, left), video diagnosis, as well as the core intelligent analysis function, at the same time support alarm linkage, let monitoring more secure.
Ø HD iDVR Three in one: combines the functions of DVR/HVR/NVR together, multi-mode input,support 16ch D1/960H for encode and decode, support analog + network HD video hybrid input, support full HD network video input.
Ø Step on the Internet:Can penetrate through all kinds of network via XM cloud service, to do remote control easily & conveniently without any complicated setting.
Ø Compression algorithm ideal:Compression algorithm upgraded to H.264 Main Profile,the advanced space-time filter technique makes the code stream lowered at least 30%.
Ø Main and Sub Stream:Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
Ø Mobile monitor: Support all kinds of mobile monitor(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Ø Display:Support TV,VGA & HDMI output synchronously, VGA, HDMI full hd 1080 p display output, make the traditional monitor display effect upside down
Ø Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using
Ø Network:Powerful net service(support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP authority,IP search,alarm center, etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
Ø Browsers:Support multi-browser(IE,Chrome,Firefox,Safari)
Ø Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc
Ø Device port:support 4 SATA port,4 HDD of 3T ,2 USB2.0 port for operation of mouse control, back up, burning and upgrade
Ø Differentiation: change boot screen freely, support more than 20 kinds of languages, more than 10 kinds of GUI interface, ten kinds of remote controller, dozens of front panel board for selection, to make different products.
Ø Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost
Specification:
|
|
Model
|
DVB-C708
|
|
System
|
Main processor
|
Technical grade embedded microprocessor HI 3521
|
|
Operating system
|
Embedded LINUX operating system
|
|
System resource
|
Multi-channel real-time recording synchronously,
multi-channel real-time playback,
multi-channel multi-user network operation, USB back up.
|
|
Interface
|
Operation interface
|
16bit real color GUI interface support mouse operation
|
|
Display screen
|
1/4/8/16 screen (take analog channel as an example
, other is base on the selected channel mode)
|
|
Video
|
Video standard
|
PAL(625lines,50fps)；
NTSC(525lines,60fps)
|
|
Image encode
|
H.264(Main Profile)
|
|
Monitor quality
|
Monitor:D1；VGA,HDMI:High definition (Max: 1920*1080)
|
|
Playback quality
|
960H/D1/HD1/CIF/QCIF
|
|
Encode capability
|
8ch D1/960H real-time
|
|
Decode capability
|
8ch D1/960H real-time
|
|
Multi-mode video input
|
Local analog input:
8*D1/8*960H
Local analog + network digital input:
4*D1+ (1*1080P+3*720P)
Network digital input:
16*D1/2*1080P+2*720P/1*1080P+1*720P+6*960H/8*720P
|
|
Motion detection
|
Each channel can set 192(16*12)detection area；can set multi-level of flexibility (for local analog channel only)
|
|
Audio
|
Audio compression
|
G711A
|
|
Bidirectional talk
|
support
|
|
Record and playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
Local playback
|
1-8ch playback at the same time
|
|
Video search
|
time,date,event,channel search
|
|
Storage and back up
|
Space occupation
|
Video:CIF 4~5G/day*channel,
D1 16~20G/day*channel
960H 24~30G/day*channel；
audio:691.2M/day*channel
|
|
Video storage
|
Local HDD ,Network
|
|
Back up mode
|
Network backup,USB portable HDD,USB imprint,SATA imprint
|
|
Interface
|
Video input
|
8ch CVBS/BNC(1.0Vp-p,75Ω)
|
|
Video output
|
2ch CVBS/BNC (1.0Vp-p,75Ω)( including 1ch Spot output
1ch VGA
1ch HDMI
|
|
Loop output
|
Optional
|
|
Audio input
|
16ch RCA(200-2800mV,30KΩ)
|
|
Audio input
|
1ch RCA(200-3000mV,5KΩ)
|
|
Alarm input
|
16ch
|
|
Alarm output
|
4ch
|
|
Network port
|
RJ45 10M/100M/1000M self-adaptive Ethernet port
|
|
PTZ control
|
1 RS485,1 RS232；support multi-kinds of PTZ protocol
|
|
USB port
|
2*USB2.0(one of them is multiplexing with what at the back panel)
|
|
HDD port
|
4 SATA ports(each max to 3T)
|
|
Wireless port
|
3G,WIFI(extension via USB port)
|
|
Other
|
Power
|
12V/6A
|
|
Consumption
|
<30W(not including HDD)
|
|
Temperature
|
0℃-＋55℃
|
|
Humidity
|
10%－90%
|
|
Atmosphere pressure
|
86kpa－106kpa
|
|
Dimension
|
190.5 mm(Length)x188 mm(Width)
|
|
Weight
|
350g
|
