Product Details:
Payment & Shipping Terms:
|
Working Time: | All-day | Display Size: | 7 Inches |
---|---|---|---|
Camera: | 130 M | Power: | DC5V,1A |
Highlight: | 4 CH DVR Security System,Video DVR Security Systems |
wireless surveillance 4 channel DVR security system with suction cup included
Specifications:
Whole sets of wireless DVR security system |
|

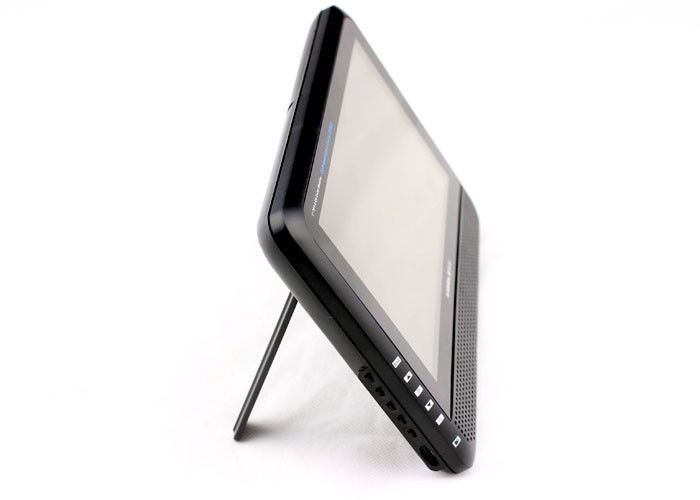

Main specifications of the monitor (receiver) |
|
Display type |
TFT - LCD RGB color |
Screen size |
7 inches |
Operation frequency |
2,400 MHz - 2,485 MHz |
Modulation |
digital RF |
Antenna type |
Omni-directional |
Television system |
NTSC,PAL |
Receiving sensitivity |
≤ 85dB |
Adapter |
AC 110 - 240V,DC 5V / 1 A |
Operation temperature |
-10℃ - 50℃ |
Operation humidity |
≤ 85%RH |
Dimensions |
190mm(L)*140mm(W)*20mm(H) |
Weight |
N.W.425g |
Main specifications of the camera(transmitter) |
|
Camera quantity |
4 pieces |
Camera sensor |
1/3" CMOS full color |
Focal length |
4.0mm |
Viewing angle |
70 degree |
Effective pixels |
Horizontal 800, Vertical 480 |
Color support |
130M pixels |
Lens |
High precision OV lens from USA |
Transmission Distance |
Max.300 meters,in open area |
IR LED type |
24pcs of IR LED 850nm/8-10m |
Camera materials |
Mg Al alloy |
Power Adapter |
DC 5V / 1 A |
Dimension |
57mm(D) x 118mm(H) |
Weight |
N.W.188g |
Descriptions :
wireless surveillance 4 channel DVR security system with suction cup included
(1). The second generation of portable wireless DVR security systems sets are mainly used for home and outdoor use,no wiring requirements,less trouble for people to drill holes for wiring.
(2). The highlights of the DVR is that it is so portable,and reliable,you can save the recording video in the micro SD or TF cards for future checking.since the format of the video is AVI,so you can check any video segment on mobile phone.
(3). Viewing mode with options of split 4,auto,and manual.video display at 30 fps,no image ghosting.
(4). The camera as a transmitter with a 17 dBm,has the ability to reach nearly 300 meters far.
(5). Adopts industrial technology of frequency hopping,assure data transmission of every channel fast.
(6). Night - vision distance in about 15 meters.
(7). Auto video segment recording,if power off,you won't lose too much details.
(8). Recommend quality micro SD or TF card for data recording and saving.
(9). All menu shows on the screen,with the button on the left side,you can operate any option.
(10). Environmental friendly,low-carbon life,power supply only DC5 volt for all.
(11). Additional car suction cup,you can put it on any smooth surface.
(12). Want to see on a bigger monitor? A/V output is just for you.
(13). Language now is in English,Chinese and Japanese,can add any language.
Package includes :
1 x Monitor
4 x Cameras (paired)
5 x Adapters
1x Suction cup
1 x User manual
Applications for :
This is a sate,durable,and reliable Digital Vedio Recorder,not only for real - time monitoring,but also
can storage all the data for backup, for future DVR reviews.
For common purpose,engineer recommend to use for below occasions |
|
Business place |
supermarket,offices,shopping malls,drug store,chain shops, home hotels, restaurants, retail sotre,pharmacy,post offices |
Public Places |
book stores, parks, exhibition halls,convention centers, ticket agencies, |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, |
TOP 5 reasons to buy:
Digital wireless technology
Digital wireless technology adopted for this system, that enables you with no messy wiring involved when setting the system up. This advanced system automatically connects on its own ( already paired, factory default settings) so you will be watching clear, interference-free footage in seconds. Superior digital functionality ensures that the signals passing between the camera and receiver / monitor remain strong as you monitor your place wirelessly, up to 150 - 200 meters away.
Long range night vision
The indoor/outdoor cameras provides you with a clear, secure picture, even when you monitor after - hours or in a dark location. Each camera is equipped with advanced night vision and 24 infrared (IR) LEDs that let you see clearly in the dark, up to 8 - 10 meters away! The LEDs activate automatically when it gets dark, and deactivate during the day to save energy (CDS sensor). With this system, you can rest assured, knowing that you will have around the clock protection.
SD card recording
you can check if anyone was on your property when you were not there. This system supports recording in micro SD card in different recording mode. Recording by motion detection will help you record more data but use less storage, SD card can be easily reviewed on monitor or mobile phone.
Support A /V output
This system supports an external TV / monitor with RCA connections. Connect your receiver / monitor to any television in your home or business with the included AV cable and experience the convenience of watching your video on any size of screen.
7/24 customer service
Technical support is available for you whenever you need it. Our team can be reached by phone or by email at any time, so that you will always have access to an expert.
Company Competitive Advantages:
(1). Senior engineer from Foxconn company to make the product more competitive on price and quality.
(2). Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
(3). Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
(4). New popular products developed every year to catch up the trend of this field,bring new market share
with clients,can accept OEM/ODM.
(5). Experienced sales persons in foreign trade department with more than 3-5 years exporting experiences,quick response for pre-sale service,sale service and after-sale service.
(6). Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping
shipping.
(7). Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
(8). Quality warranty for 1 year,free exchange for defective product within 1 year.
