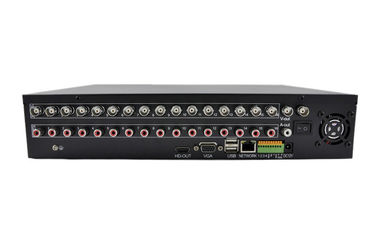

China 16 Channel DVR Security System – H.264 DVR, 16-CH Audio Input
Quick Detail:
1.16 channel DVR security system
2.With H.264 High efficiency Video Compression
3.16CH support 8CH playback at same time.
4.16CH with total 400fps support 2D1@25fps+14CIF@25fps
Features:
1.Support Symbian, S60V3/V5, Windows mobile, iPhone, android , BlackBerry, mobile phone live view via 3G net
2.Support a 2TB HDD, with 2 USB2.0 slot, support USB, mouse, backup, burning, upgrade
3.Strong Network server, support IE review and CMS(can manager over 500 units DVR)
4.With Chinese, Russian, English, Italian, Portuguese, Spanish, …….. , Arabic 25 language
5.Build-in 3322.org,dyndns.net, oray.net, myq-see.com free DDNS.
6.Build-in own free DDNS http://www.secu-link.com:8080
7.With HDMI output (1920 * 1080)
8.Support NVR,HVR, 2*1080P / 4*720P / 9*D1 IP Camera input
Specifications:
|
Model
|
ZW-6016E
|
|
Main Processor
|
Hisilicon Hi3520A chip
|
|
Menu display
|
1/4/8/9/16screen
|
|
Video Standards
|
PAL(625 line,50f/s)；NTSC(525 line,60 f/s)
|
|
Surveillance quality
|
PAL,D1(704×576)；NTSC,D1(704×480)
|
|
Code ability
|
400/480fps 2D1@25fps+14CIF@25fps
|
|
Hybrid input
|
Analog 2D1+ digital 1*1080P+ Digital 1*720P
|
|
Digital input
|
2*1080P / 4*720P / 8* 960H / 9* D1 / 1* 1080P+1 *720P+2 D1 / 2* 720P + 4D1 / 1* 720P+ 7D1
|
|
Motion Detection
|
Zones:396(22*18)detection zones, many levels of Sensitivity setting
|
|
Recording Mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
Playback
|
8CH playback at same time
|
|
Search Mode
|
Time/Date,Alarm, Motion Detection & exact search(accurate to second)
|
|
Space Occupation
|
CIF:5G/DAY/CH D1:20G/DAY/CH 720P:40G/DAY/CH 1080P:80G/DAY/CH
|
|
Video storage
|
Hard disk, , and net
|
|
Backup Mode
|
Network burn, mobile Hard disk and USB burn,DVD+RW
|
|
Video Input
|
16channel,BNC, .0Vp-p,75Ω
|
|
Video Output
|
1 channel, BNC, 1.0Vp-p,75Ω and 1 VGA output, 1 channel HDMI Output (1920*1080P)
|
|
Audio Input
|
16 channel RCA
|
|
Audio Output
|
1 channel ,RCA, 200-3000mV,5KΩ
|
|
Alarm Input
|
4 alarm inputs
|
|
Alarm output
|
1 alarm outputs
|
|
Net Interface
|
RJ-45 (10M/100M)
|
|
PTZ Control
|
1 RS485
|
|
USB Interface
|
2*USB
|
|
Hard Disk
|
2 SATA ports (max2048G)
|
|
Power Supply
|
12V/5A
|
|
Dimension
|
350mm x 325mm x 70mm(W*D*H)
|
|
Weight
|
3.5 kg(not with HDD)
|
Packing List:
16CH DVR
Mouse
Screws
Remote control
User manual
Power adapter
CD-ROM
Competitive Advantage:
We research and manufacture embedded products, including Single-Channel DVR, Four-Channel DVR, Eight-Channel DVR, Sixteen-Channel DVR and 32/24 Channel network DVR based on H.264. Our DVR, with the features of high integration, stable performance and easy operation, supports variety of networking solutions and large hard drives. We have all software copyrights and design documents. All products have been certified by safe quality systems such as FCC and CE.
Tag:
Standalone DVR 16 Channel, 16CH Embedded DVR System, Digital Video Recording 16 Channel
