300m Long range transmission 17dB 4 camera DVR security system with TV system support
Specifications:
| SEEPOWER system information,SP817 |
|

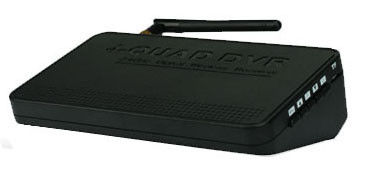

Features of receiver
|
Transmission frequency
|
2.4GHz-2.485GHz Digtal RF modulation
|
|
|
Antenna type
|
Omnidirectional
|
|
|
Receiving sensitivity
|
≤85dB
|
|
|
SD card storage
|
Max.32GB
|
|
|
AV output
|
2 ways of output
|
|
|
TV system
|
NTSC/PAL
|
|
|
Operation temperature
|
-10℃~50℃
|
|
|
Power Adapter
|
DC 5V/ 1A
|
|
|
Power consumption
|
＜5W
|
|
|
Dimension
|
160mm(L)*90mm(W)*46mm(H)
|
|
|
Weight
|
125g
|
|
Features of transmitter (camera)
|
Image Sensor
|
1/3" omnidirectional vision CMOS
|
|
|
Camera Lens
|
Imported OV lens from USA
|
|
|
Focal length
|
4.0mm
|
|
|
Horizontal Definition
|
480 TV line
|
|
|
Number of Color
|
130M pixels
|
|
|
Night-vision distance
|
8-10 meters
|
|
|
IR used
|
Quality IR LED 850
|
|
|
Camera shell
|
Magnalium alloy
|
|
|
Transmission Distance
|
Min.150m in open area
|
|
|
Power Adapter
|
DC 5V/ 1A
|
|
|
Dimension
|
57*mm(D)*118mm(H)
|
|
|
Weight
|
188g
|
Description:
Long range transmission digital Wireless DVR security system with TV system support
Features:
1. Wireless 2.4G security system kit adopts FHSS tech, which can dynamically select free channels to transmit to avoid interference from other 2.4GHz devices. The digital wireless receiver has 2 ways of output terminals, connect to 2 sets of monitors at the same time,TV system support PAL and NTSC.
2. 2 ways of output interfaces bring high resolution full color display up to 480TV line with built-in video recording.
3. Real-time video display,monitoring mode:quad image,certain 1 camera or auto switch for 4 cameras.video quality:4CH(quad image) VGA 10fps.1CH(one image) VGA 30fps.
4. Transmitting data is encrypted to protect individual privacy,can't be checked by other device through the air.
5. Night Vision,quality infrared LED 850 used(24pcs),the same as professional CCTV camera (Effective range: 8-10m).
6. Omni-directional bracket for the camera, with built-in microphone you can see the vedio and hear the sound from the monitor.
7. Support up to 32G SD TF card, 4 cameras/24hours/7days non-stop overwrite recording,can playback on mobile phone.
8. Multiple recording modes:manual, auto, motion detection.
9. Weatherproof outdoor camera,camera shells are made of magnalium alloy.
10. Long transmission range Up to 300m (990ft) in open area.
Package content:
1 x Monitor
4 x Cameras (paired)
1 x Manual
5 x Adapters
1x Suction cup
Applications:
Below applications for your reference.
|
Business Organizations
|
supermarket, shopping malls, chain shops,hotels, restaurants, travel agencies, pharmacy,post offices,farms,homes
|
|
Public Places
|
bookstores, parks, exhibition halls,convention centers, ticket agencies, HR market, lottery centers; Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments
|
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
Frequently asked questions ( FAQ ) :
1. How to add extra camera to the system with 2 cameras now?
If you buy 2 cameras with monitor as one set, sometimes you want to add extra camera to the system, be sure to buy the same camera from the same factory, otherwise it will not work. Read user manual before operation for " pairing " , when gets in the menu of pairing, press “pairing” on the screen, meanwhile press the button on the connector of the camera, you can see the video from the camera immediately.
2. Why can’t I listen to the sound ?
You can’t listen any sound when in quad image monitoring,you need to choose certain channel to hear the sound from camera,be sure the sound of camera is not mute.
3. Will all the recorded audio video be lose when the power is off unexpected?
Before recording,we recommend to choose segment recording mode in the option of Motion Rec. 5s or 10s for every recording segment,so when the power off, you will lose very few data.
4. Can I use other adapter for the system?
Not recommended.The adapters included with the system are customized to meet 7/24 time’s working after strict quality test and aging test, safety and reliable to system and people.
5. Do you accept small orders like 5pcs, 10pcs or drop shipping?
Yes, no problem. We keep stock for about 50 sets for each model, which can be as samples for customers or for small orders. the unit price will be also competitive in small order or drop shipping.
6. Can you accept OEM or ODM order?
That’s welcomed. Believe in our R & D team, you will satisfied with the product which you expected
